Legacy Email Composer User Guide

  • Updated

Maintain your legacy emails with the Legacy Email Composer.

New Email Composer User Guide 00a.png

For the most up-to-date way of creating emails in Act-On, see the Email Composer.
Some features are not available when sending from a CRM or Act-On Anywhere.

Legacy Email Options


When you go to Outbound > New Message following option tiles are available for starting a legacy email:

Option Description

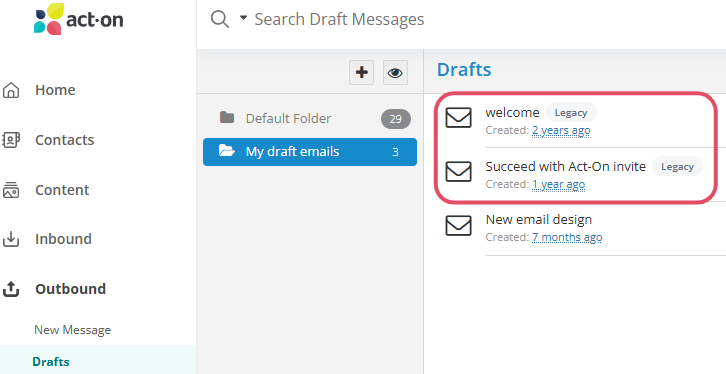

Draft Message Start a new message using a draft legacy email that you previously saved. This option creates a new email using the draft legacy email as a Template.
Template Message Start a new message using a legacy email template that you have previously created.

Sent Message

Start a new message using a copy of a legacy email message that you have already sent.

This will import the message design, content, and settings.

You also have the following options available at the bottom, next to Create a message with the legacy email composer:

Option Description
Blank message Start a new message using your default header and footer, and without pre-existing content in the body of the message.

You can customize the style for your blank message.

Plain text email

Start a new plain text message with no styling, images, or hyperlinks.

Plain text messages do not include tracking for opens or clicks but may be necessary for older email clients or recipients with rigorous security settings.

Upload HTML code

Import a pre-designed email from a .txt, .htm, .html, or .zip file with HTML and images. You can also enter a URL to be copied from the web.

This will create a raw HTML block in your message so that you can continue to edit the code as needed.

Address

Begin building your new email in the Address tab of the Legacy Email Composer. Here, you can set the Message Title, Subject Line, and Preview Text for your message, as well as choose the list or segment you wish to send to.


Feature Description
Message Title The Message Title is for your own reference in Act-On, and will not be visible to contacts. This displays in message listing pages and reports.
Subject Line The subject line that contacts will see in their inbox.

See Tips for Email Subject Lines for suggestions.
Preview Text This is the preview text your recipients will see next to the subject line in their inbox.

For help creating effective preview text, check out Litmus' Ultimate Guide to Preview Text.
Sender Identify the person sending the message. This will appear in the From field of your email message.

From addresses you have added can also be personalized based on the contact's information.
Reply To Identify the email address for replies to your message. This list is identical to the Sender list, but the selection does not have to match.

Hint: You can also specify a no-reply@ address if you do not manage replies. To do this, add the no-reply address to your account's From addresses.
Recipients Select lists, segments, or individual contacts to send your message to. Options will vary depending on your user privileges.
  • Choose Lists or Segments
  • Choose Specific People
  • Add People
Suppress Against Select lists or segments that will not receive your email message.

If a contact exists in both sending and suppression lists, they will, by default, not receive the email message.

Creating a targeted segment to send your email message to is strongly recommended over applying a suppression list to an existing list. See Defining a Segment for more information.

Options:
  • Choose Suppressions. Specify lists or segments to suppress against.
  • Suppress Duplicates. Prevents duplicate emails from being sent to individuals appearing in two or more specified lists or segments of recipients. If this is not selected, contacts may receive more than one email if their email appears on more than one list.
Subscription Category Enables email contacts to opt in or out of specific email categories. The Subscription Management feature must be enabled for this option to appear.
Act-On Campaign Select an Act-On Campaign from the dropdown menu to add your email message for consolidated reporting.

The Campaigns feature allows you to group multiple email messages, forms, landing pages, and media into a single report.
Attach 'Sent'Note to CRM Leads/Contacts Create a “Sent” note to your CRM Leads or Contacts. You must have an integrated CRM for this option to appear.
Advanced Custom Analytics Append custom query string data (parameters and values) to the clickthrough links in your message for enhanced custom analytics and functions.

Design

Use our simple but powerful drag-and-drop editor to build your email. Your message appears on the left of the screen, and your design tools are available on the right.

Stationery

Stationery consists of the visual or aesthetic elements that frame the content of your email message. These design elements can compose a central theme for you to build layouts and styles on for future use.


Feature Description
Stationery

Act-On provides several different types of Stationery, and you can also create custom Stationery to match your brand image.
Choose a Stationery from the dropdown to see additional options.Screen_Shot_2021-12-27_at_12.14.26_PM.png

If you choose No Stationery or Plain Text Only, the remaining options in this section will be limited.

Responsive Design Enable or disable the ability for your email message to flexibly adapt to different-sized viewports. This feature is enabled by default.

We strongly recommend keeping this feature enabled so that your email messages are more mobile-friendly.
Align Logo Align your logo to the left, right, or center of the screen.

Remove your logo by selecting Suppress.

Message Width

The width of your email message in pixels (px).

The default width of your email message is set to 600px but can be reset to any value between 300px and 1200px.

Choose to Use 100% to create an adaptive email design that changes width to match the viewing area of the screen.

Align Message Align your email message to the left or center of the screen.
Background

Change the background colors for your email message.

Use a Hex code or select from predetermined popular and web-safe colors.

  • Outer Background Color
  • Inner Background Color
Border Modify the color, thickness, and corner radius of the email border.

Content

Open the Content section to drag and drop the Smart Content Blocks to build your message.


Block Description
Greeting Insert one of eight personalized greetings in your email.

You can set a default greeting to use when you are missing personal data for the contact.
Rich Text Places a WYSIWYG (“What you see is what you get”) message editor that allows you to create a text body within your email.
Signature Adds a signature in the email.

You can choose between displaying a default signature or selecting a signature that you have created.
Media File Download

Inserts a downloadable link to a media file located in your Media Library that can be set to expire on a specific date. You can label the link with text or a graphic.

Learn more about adding files to the Media Library.

Form Link Allows you to select and insert a link to a Classic Form. You can label the link with text or a graphic.
Time & Place Allows you to create and insert the details for a meeting or event into your message.

You will need to specify the event name, place, time, and optionally, teleconference details.
Multiple Choice Insert a simple poll into your message.

You will need to specify a prompt and provide choices for contacts to select from. You can use the settings to allow contacts to make multiple choices, leave comments, or see other contacts’ responses.
Image Insert an image from your Image Library into your message.
You can set a Target URL that takes the contact to a Form or Landing Page. You can also include alt text for your image, align it, and add a description.
Business Card Insert a block of contact information that the contact can click to download as a VCF (Virtual Card Format) or vCard.
Spacer Insert a customizable block of space that allows you to visually separate blocks in your message.
Dynamic Content Insert conditional content sections into your message to provide tailored messages for your recipients based on characteristics that you decide. Dynamic content can be set to change based on user data, behavior, or preferences.
Custom Content Insert or upload custom HTML code blocks that would normally be stripped away by the validation in Rich Text blocks.
Social Share Insert customizable buttons for sharing links to your social media on various platforms.
You have the option to add a prompt or link to share your social media with others.
Sections Insert areas to your message where content blocks can be placed.
You can choose between one-, two-, and three-column sections to format custom layouts for your emails. Column properties can be edited, providing greater control over the color, border, and padding for any individual content block.

Additional Options

Option Description
Undo/Redo

Undo or redo changes to your email design.
Undo
Buttons are available at the top right of the design area.

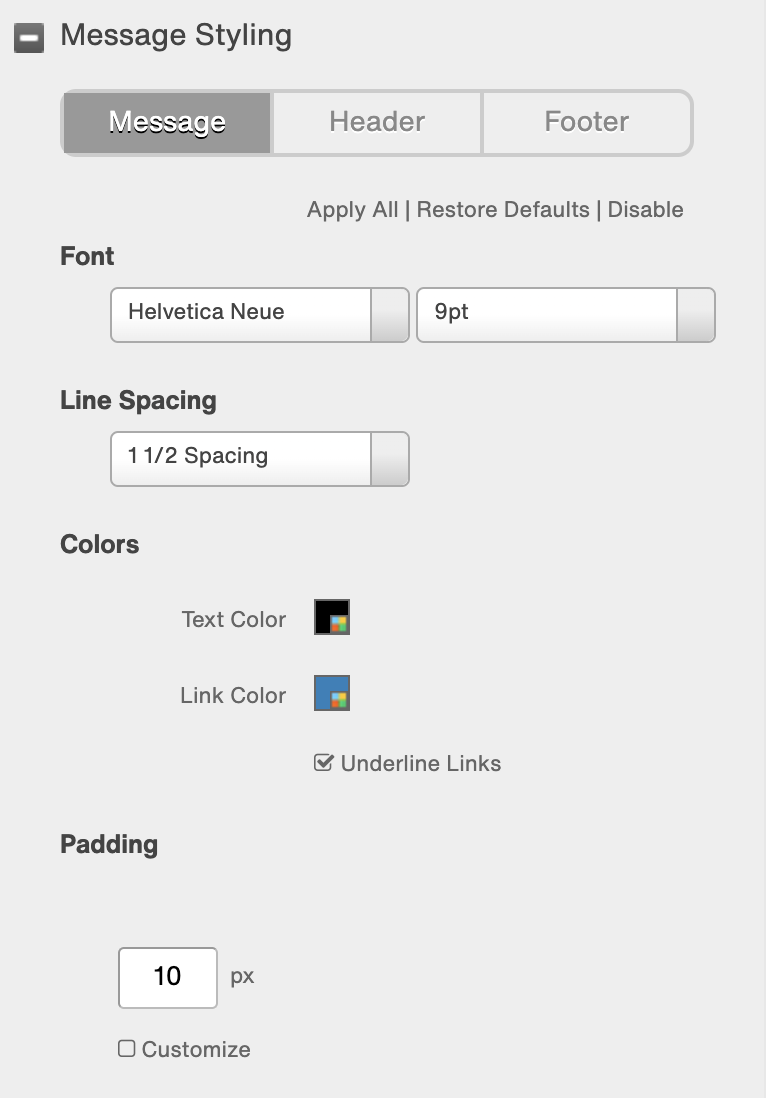

Message Styling

Message, Header, and Footer control the font, line spacing, colors, and padding properties in your message.

Click Enable for any of these options to edit the styling options available, or Disable to turn it off.


Also see Hyperlink Underlining

Edit Plain Text Version

Generate and customize the plain text version of your HTML email.
Most contacts receive and view their email messages in an HTML format. However, there are still email clients and mail servers configured to accept plain text content only.

Tip! If you make changes to the content in the rich text version of your message, you may need to update your plain text version after creating it the first time.

Validate Clickthrough Links Test all click-through links to ensure they lead to a web page (not a 404 error).
Select clickthrough links to view all links contained in your email, along with their associated anchor text.
Download Creatives Download the HTML and CSS files of your email message.
These files can be forwarded to anyone who needs to send this email message from their own systems.
Check Spelling Perform a message-wide spell check for all blocks containing text (headers, footers, etc.).

Email Header and Email Footer

See Email Headers and Footers for more information.

Review

After you've designed your email message, you'll want to look it over for accuracy.

Feature Description
Preview Your Message Preview your email message in three formats: HTML, Text, and Mobile.
Sample Preview Preview how personalization will appear to your contacts.
Validate Message Check your email message for required attributes such as a subject line, sender address, contacts, email content, and opt-out links.
Spam Score Generate a spam score from 0 to 15 by checking your email message for spam characteristics.

Use SpamAssassin, MessageLabs, Barracuda, and Outlook to generate your spam score. Higher scores indicate a greater risk of your email message being flagged as spam by your contact’s email provider.
Test with Litmus Generate previews and test how your email content will display in the most commonly used email clients.
Check Account Limits Check account limits and current usage to ensure that your email message can be sent successfully.
Check Full Personalization Check your email message for any personalization errors that would prevent a message from being sent to a contact.

Send

Under the Send tab of the Legacy Email Composer, you will see five options to send your message.

To learn more about each option, see Choosing an Email Send Method.

Option Description
Send now Send your email message to contacts immediately.
Send at the following time Send your email message to contacts at a specified date and time in your time zone.
Send in the recipient's time zone Send your email message to contacts at a specified date and time in the contact’s time zone.
Provides an option to specify a preferred time zone for sending if the contact’s time zone is unknown.
Send over time Stagger your email messages to be sent to contacts over a specified period of time, rather than all at once.
Use Adaptive Sending Use predictive intelligence to determine the best time to send contacts your email message.
